Ceramic Balls

Zirconia balls ZrO2

Density: 6.05g/cm3
Finish grade: G5-G40
Color: mainly in white
Sizes: 0.4mm-50.8 and in different gauge
Product description: Zirconia Ceramic balls are always used for the grinding media for titaniium powder.
INQUIRY

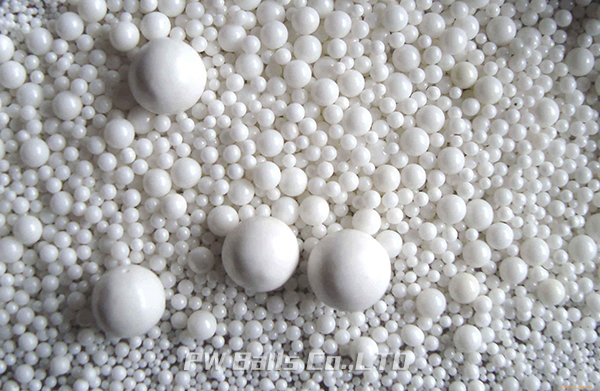

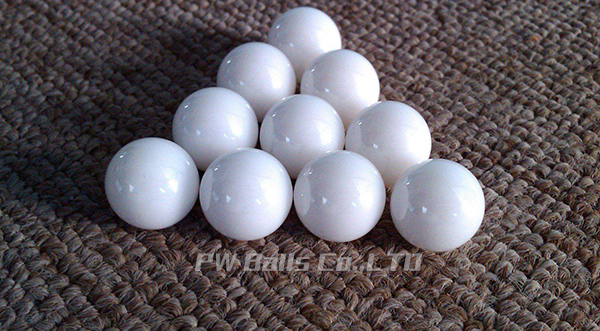

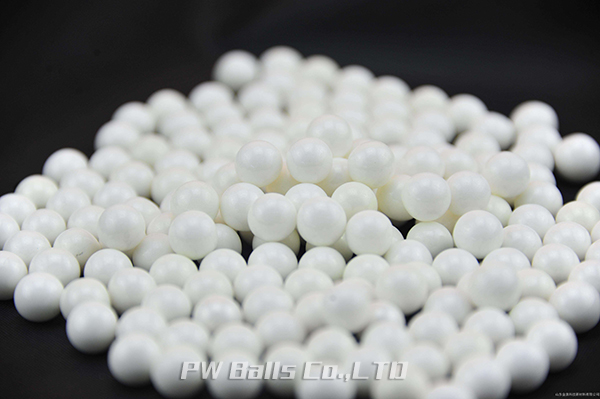

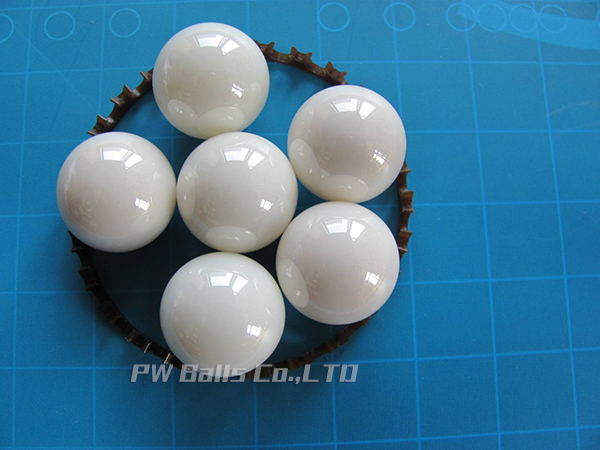

Zirconia Ceramic ball

Characteristics:

1) Preventing material from contamination because of its extreme low wear rate.

2) High grinding efficiency.

3) Lower total costs due to the long using life.

4)Suitable for high velocity operations and wet grinding operations.

Properties of Ceramic Balls

Item	Units	Si3N4	ZrO2
Color	-	Black	White
Density	g/cm³	≥3.20	5.95-6.05
Hardness (HV)	Gpa	16	12
Flexural Strength	Mpa	>720	900
Fracture Toughness	Mpa.m^1/2	6.2	7
Elasticity Modulus	Gpa	300	210
Coefficient of Thermal Expansion	10^-6/℃	3.0-3.2	10.3
Thermal Conductivity	w/m.k	15-20	2.2
Volume Resistivity	Ω.cm	>1014	1012
Max. Operating Temp. (No load)	℃	1200	850
