Ceramic Balls

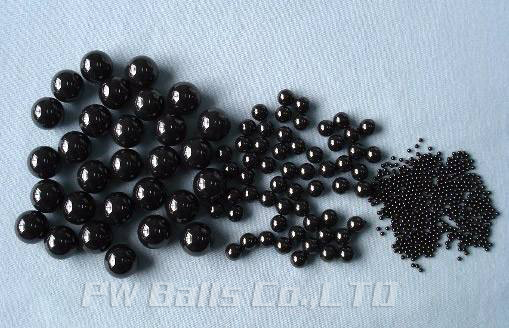

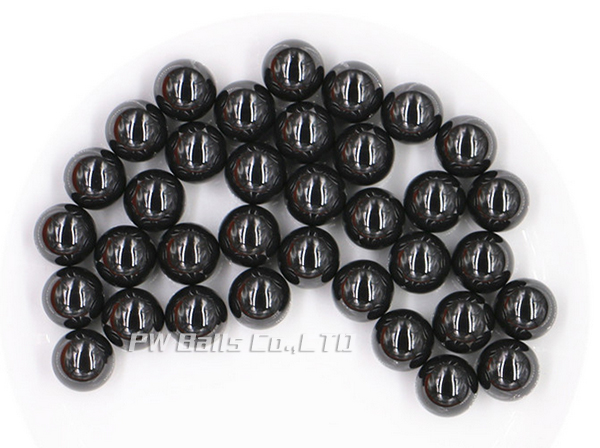

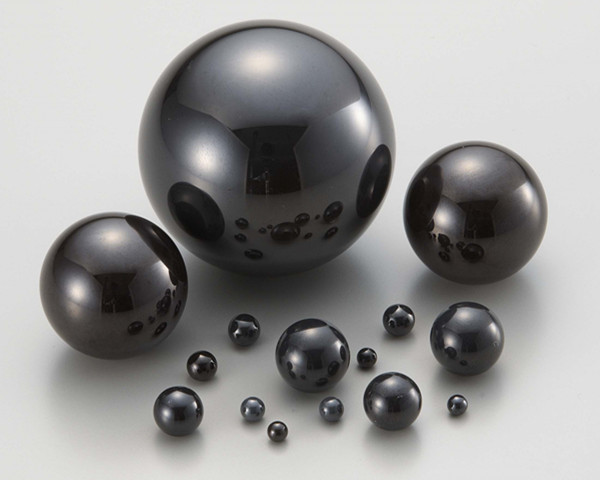

  • Silicon Nitride balls
  • Silicon Nitride balls
Silicon Nitride ballsSilicon Nitride balls

Silicon Nitride balls

  • Sintering: GPS
  • Denstiy: 3.20g/cm3
  • Finish grade: G5, G10
  • Feature: Good Self-lubrication
  • Product description: Silicon Nitride ceramic balls has Good Self-lubrication and perform well under high temprature.
  • INQUIRY

Silicon Nitride balls

Features:


1. Strong acid, alkali resistance, can also be used in Seawater.

2. High temperature and wear resistance, strength and hardness is almost the same from room temperature to 1200℃

3. Nonmagnetic, electrical insulation,  can also be used in magnetic field

4. Light weight with density 3.2g/cm3, 1/4 lighter than ordinary bearing materials.

5. High Hardness and high strength, hardness is twice of GCrls, elasticity modulus is 1/3 higher than GCrls.

6. Centrifugal force is small when rotating due to the low density.

7. Coefficient of Thermal Expansion is only 1/4 of GCrls, can be used in high temperature

8. Silicon Nitride has good self-lubricating, can work without lubricant.

9. Never rust

10. Silicon Nitride Balls can reach high precision because its structure is stable, not easy to cause deformation.

Properties of Ceramic Balls

Item

Units

Si3N4

ZrO2

Color

-

Black

White

Density

g/cm3

≥3.20

5.95-6.05

Hardness (HV)

Gpa

16

12

Flexural Strength

Mpa

>720

900

Fracture Toughness

Mpa.m1/2

6.2

7

Elasticity Modulus

Gpa

300

210

Coefficient of Thermal Expansion

10-6/

3.0-3.2

10.3
